Description

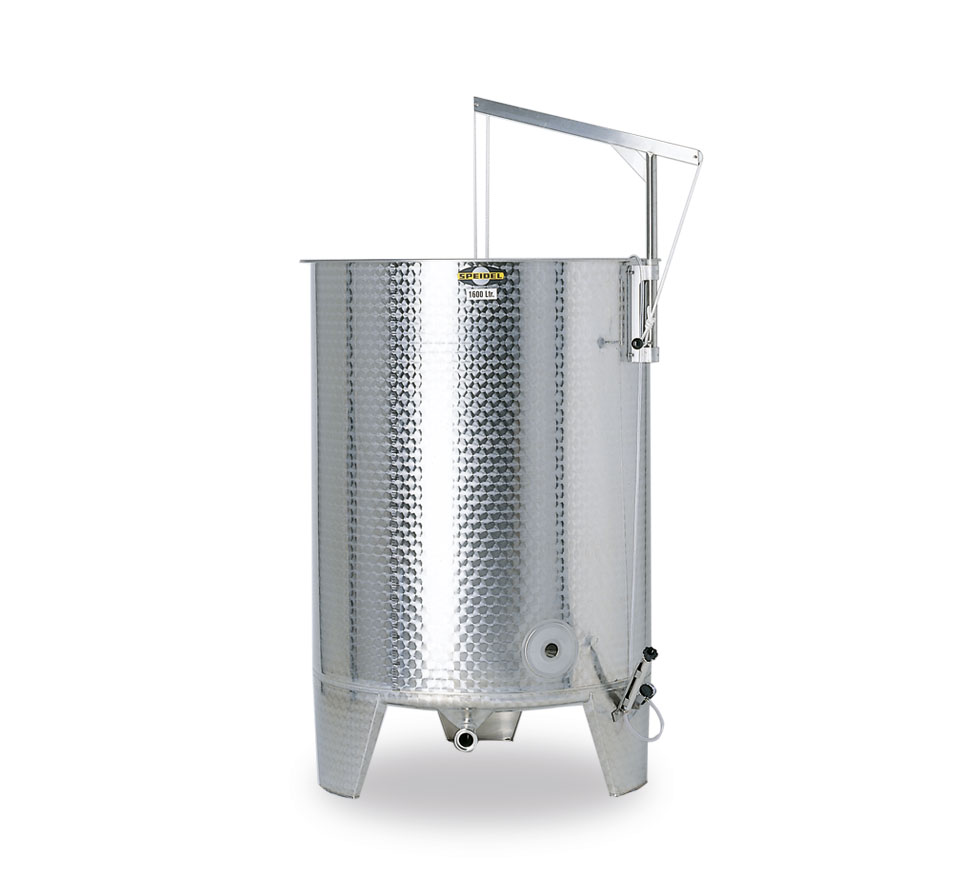

Variable capacity tank FO2
Speidel’s variable capacity tanks always adapt to the amount of liquid they contain. The floating lid ensures that no air comes in. This way oxidation stands no chance. The popular variable capacity tanks have been established and proven in many ways. Like all Speidel tanks they are top-quality. They can be used as storage tanks or fermentation tanks.
Standard variable capacity tank FO2 accessories
- AISI 304 stainless steel, surface IIId (2R), marbled outside
- Tank open on top with strengthening rim
- Vaulted tank bottom
- External litre scale
- Standing on 3 legs
Width of rim
- Up to 300 litres capacity = approx. 17 mm
- From 530 litres capacity = approx. 42 mm
Racking outlet FO2
- Plain surface with drilled hole ø 48 mm (to hold flap valve Gr. 37 or weld-on thread NW 40, NW 50 DIN 11851)
- In case of ø 630 mm reinforcement moulded out of the tank’s casing
- In case of ø 820 mm with welded-on reinforcing plate
Bottom outlet FO2
- Total outlet neck with external thread NW 40 DIN 11851
To learn more about Speidel and why we at FermTech Solutions have partnered with them, feel free to contact us.
